Key Specifications | |
|---|---|
Maximum Combined Material Thickness |
3.5 mm [Mild Steel] |
Throat Depth |
100 mm |
Cycle Time |
1 second |
Weight |
14.8 kg [32.6 lb] |
Standard Input Pressure |
6.0 BAR [87 PSI] |
Tool Sizes |
3.0 to 4.6 |

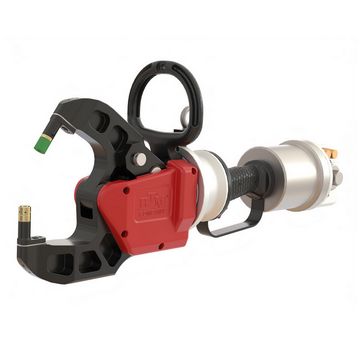

Extended Throat
HHPE-H73

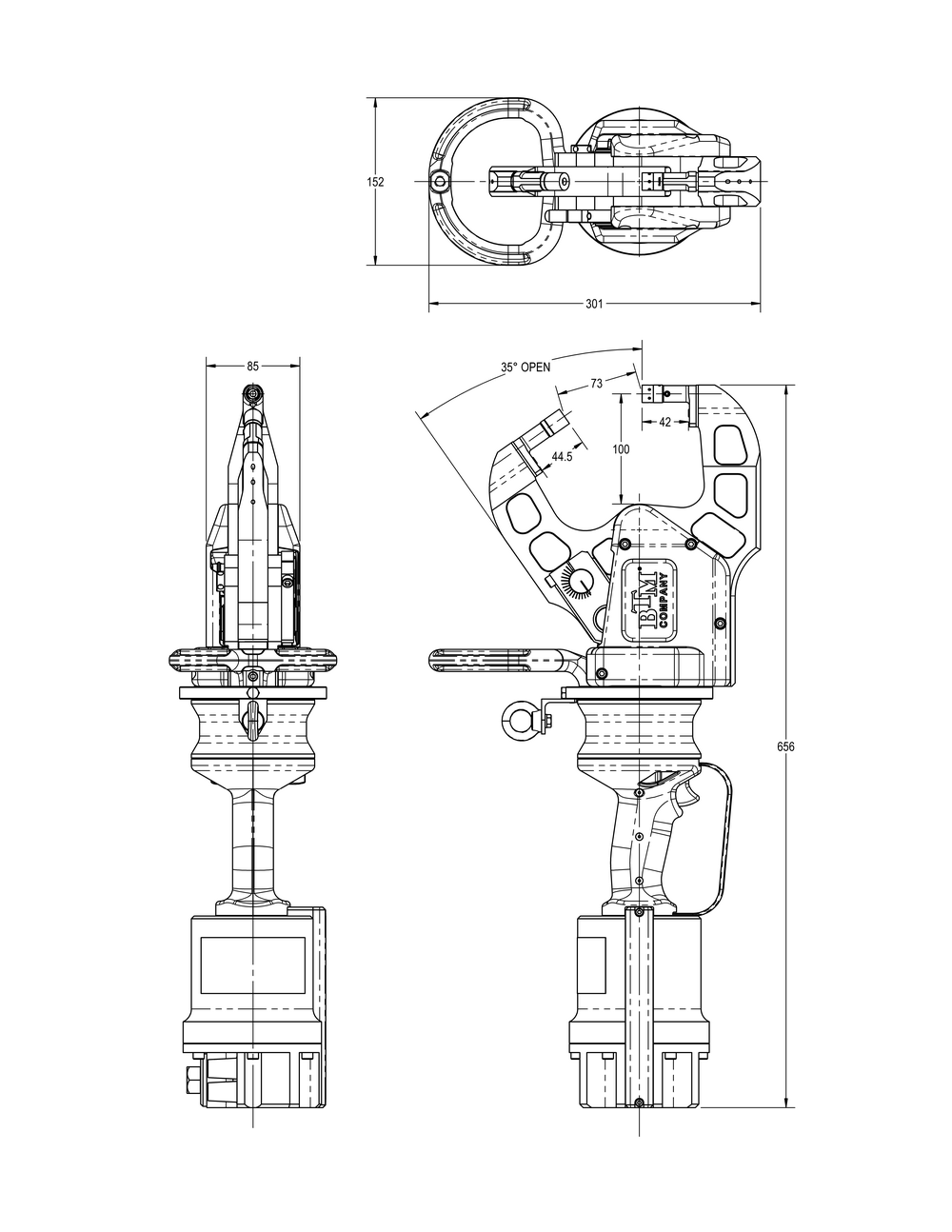

PD4244/5
HHPE-H73
- High Volume Manual Clinching
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Metal Structure Assembly
- Roofing
- Furniture
- Filter Assembly
- Prototype Assembly
- Roller Garage Door Assembly
- Solar Panel Frames & Support Structures
- Extended Throat Depth Provides Access for Deep Part Clinching
- Clinches with Both Round & Geometric Clinch Tools
- Quick Change Tooling for Multiple Applications
- Reversible Tooling
- Jaws Engineered for Increased Part Clearance
- Integral Ball Bearing Pivot Ring for Ergonomic Positioning
- Grips Contoured for Operator Comfort
- Operates From a Single Shop Air Line
- 35 kN Compressive Force [3.9 Ton]
- CE Approved
- Controller for Joint Validation
- Balancer for Weightless Operation
- Custom Jaws Engineered to Your Requirements
- Heavy Duty Stripper for Thicker Materials
- Tog-L-Loc® 3.0, 3.8, 4.6
- Lance-N-Loc® 3.0, 3.8
- V-Loc™ 3.8
- Oval-Loc® 3x6
