Key Specifications | |
|---|---|
Maximum Combined Material Thickness |
4.0 mm [Mild Steel] |
Throat Depth |
50 mm |
Cycle Time |
1 second |
Weight |
14.3 kg [31.5 lb] |
Standard Input Pressure |
6.0 BAR [87 PSI] |
Tool Size |
5.5 |

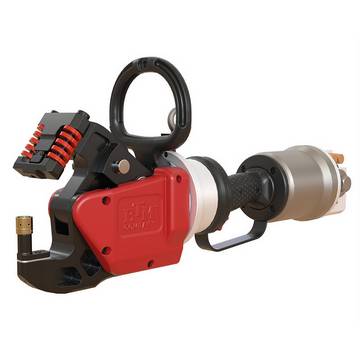

Heavy-Duty Horizontal Jaws
HHPHD-H47
PD4235
HHPHD-H47
- High Volume Manual Clinching
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Metal Structure Assembly
- Roofing
- Furniture
- Filter Assembly
- Prototype Assembly
- Roller Garage Door Assembly
- Solar Panel Frames & Support Structures
- Heavy Duty Design for Demanding Clinch Joining Application
- Heavy Duty Stripper for Thicker Materials
- Quick Change Tooling for Multiple Applications
- Reversible Tooling

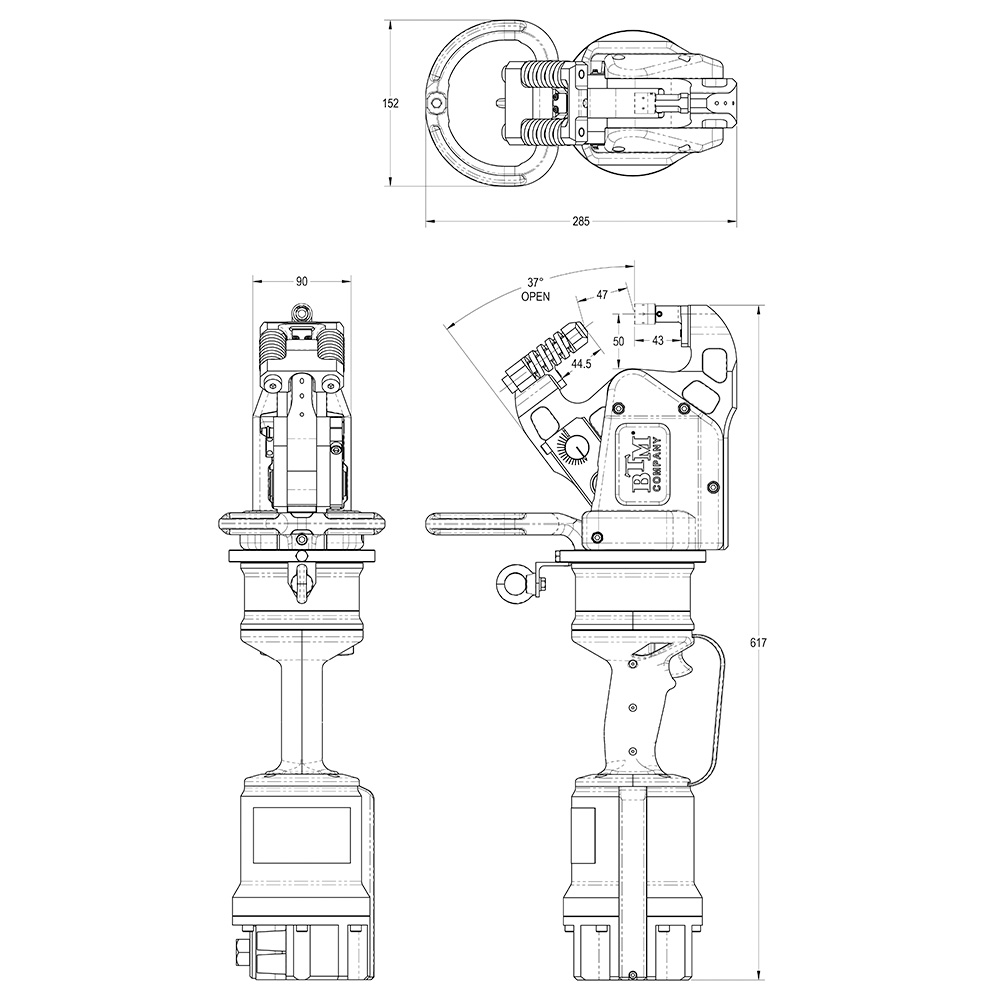

- Jaws Engineered for Increased Part Clearance
- Integral Ball Bearing Pivot Ring for Ergonomic Positioning
- Grips Contoured for Operator Comfort
- Operates From a Single Shop Air Line
- 47 kN Compressive Force [5.3 Ton]
- CE Approved
- Controller for Joint Validation
- Balancer for Weightless Operation
- Custom Jaws Engineered to Your Requirements
- Tog-L-Loc® 5.5
- V-Loc™ 5.5
