Series 10 P-10-CMB Bearing Press PD3958

Series 10
P-10-CMB Bearing Press
PD3958

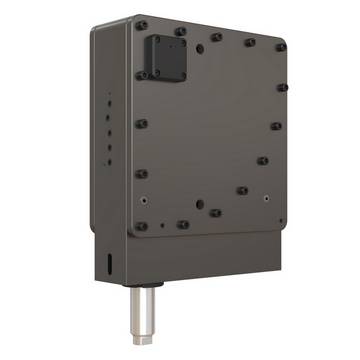

P-10-CMB Bearing Press

P-10-CMB Bearing Press

P-10-CMB Bearing Press

Proximity Switch

Flange Mount with Ram Latch

The thin design of the Bearing Press Head offers simplified, flexible and cost-effective solutions. Bearing Presses are lubricated for life eliminating the need for routine maintenance.

Key Specifications
Force Output	88 kN [10 Ton]
Stroke	76 mm [3 in] (Other stroke available)
Cycle Time	1 second
Weight	64.6 kg [142.4 lb]
Standard Input Pressure	5.5 BAR [80 PSI]
Tool Size	3.0 to 6.4

Clinching
Piercing
Forming
Bending
Stamping
Coining
Shearing
Notching

Lubricated for Life
For Applications Requiring More Force
Thin Profile for Close Stacking
Simple Pneumatic Advance/Retract
Non-Rotating Ram
68% Lower/Reduced Air Consumption Compared with Conventional Pneumatic Cylinder
G ½ Ports
Hardcoated to Rockewll C-70 for Excellent Wear Resistance
88 kN Compressive Force [10 Ton]

Other Strokes Available – [Standard: 76 mm Stroke]
Stroke Lengths from 25 mm to 114 mm
Ram Options

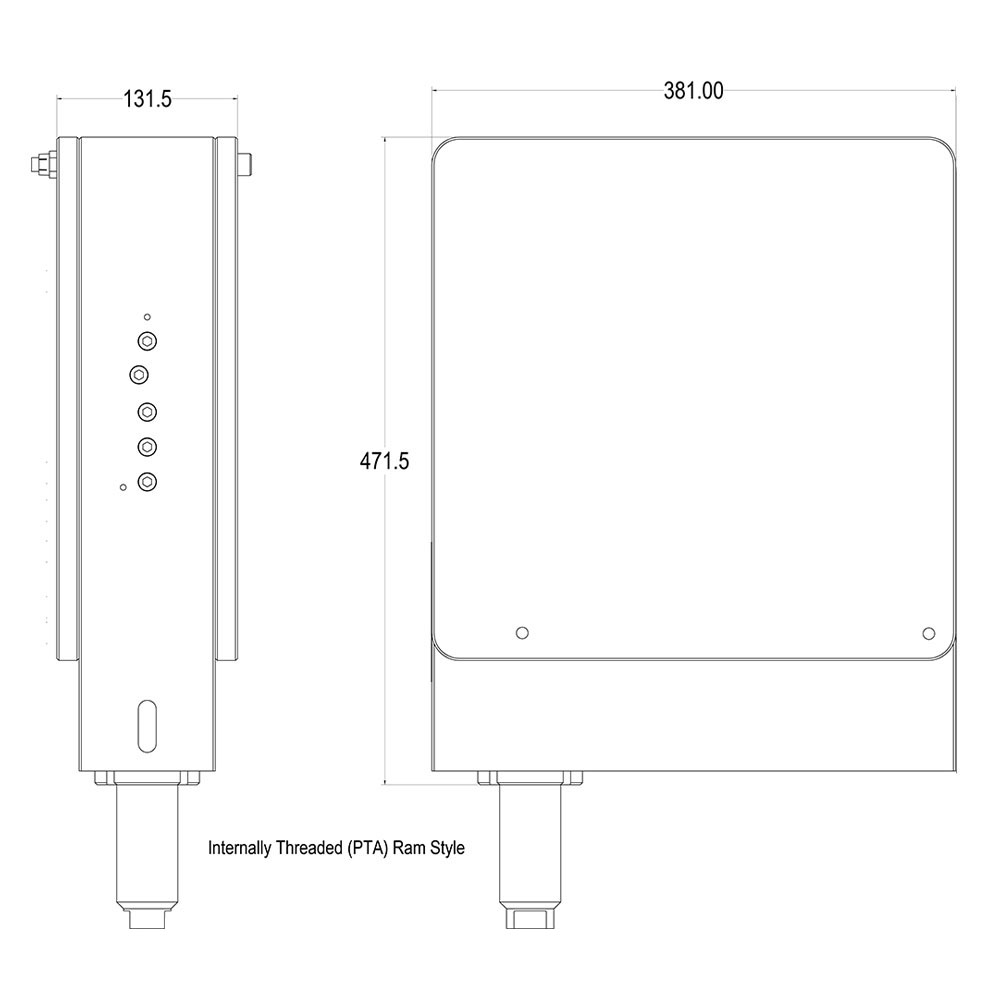

- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)
Advance/Retract Proximity Switch Position Sensing
Flange Mount
Flange Mount with Ram Latch
Custom Force Frames Engineered to Your Requirements
Tog-L-Loc® 3.0, 3.8, 4.6, 5.5, 6.4
V-Loc™ 3.8, 4.6, 5.5, 6.4
