Manual drive presses provides the operator with full control to precisely locate the clinch. Designed specifically for sheet metal fabricators, this is an economic alternative for clinching and short stroke pressing needs.

    Key Specifications

    Force Output

    44 kN [5 Ton]

    Stroke

    101.6

    Throat Depth

    460mm

    Input Pressure

    5.5 BAR [80 PSI]

    Cycle Time

    2 sec.

    Weight

    165 kg [362 lb]

    Tool Size

    3.0 – 4.6 Tog-L-Loc & Geometric Tools

    • Low Volume Clinch Fabrications
    • Prototype Assembly
    • Pressing Bushings & Bearings
    • Manually Driven
    • Optimized for clinching
    • Only Requires Single Air Line
    • Quick Change Tools For Multiple Applications

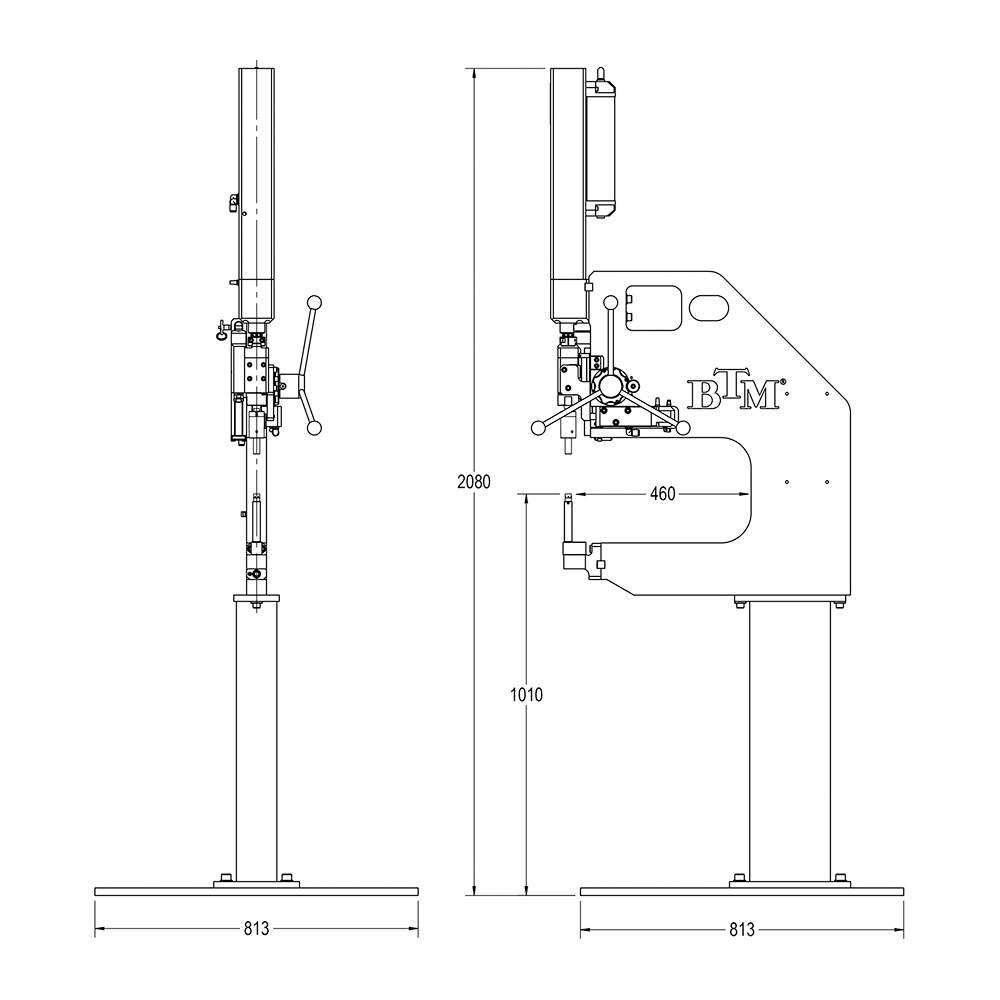

    • Floor Stand
    • Tog-L-Loc
    • V-Loc
    • Oval-Loc
    • Lance-N-Loc
